Product characteristics:

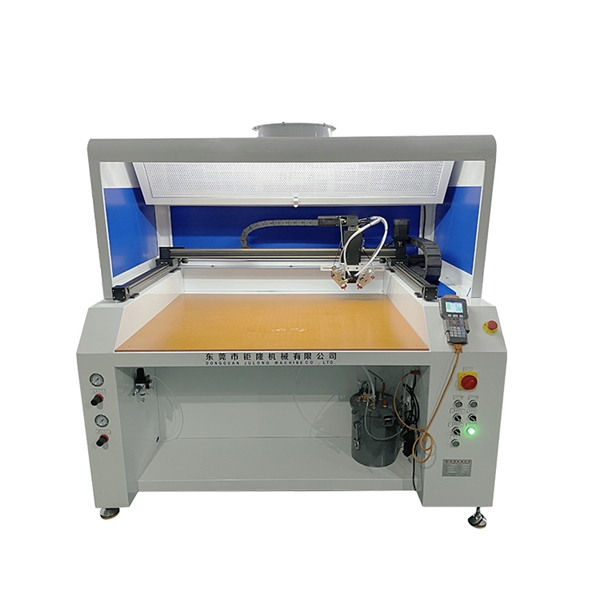

The fully automatic intelligent glue spraying machine adopts international advanced computer control technology, which is very convenient to operate and suitable for spraying of materials from various industries such as footwear, wallets, handbags, luggage, and accessories.
1. Easy to operate, can be programmed on-site using a touch screen computer, or can be accessed on a computer through CAD/CORELDRAW and other applications are programmed and converted to PLT format before downloading to the machine, making it easy to learn and understand.
2. High speed, using a bridge platform structure, capable of working while placing materials, and spraying adhesive at a speed that is comparable to that of humans work 5-6 times.
3. Up to four axis linkage, in addition to forward and backward movement, left and right movement, it can also be three-dimensional, inclined, and solitary glue.
4. High precision, uniform adhesive spraying surface, completely free from pushing or dead adhesive phenomenon.
5. The inside of the glue bucket is completely sealed, so the glue will not dry out. Reduce waste while also avoiding the pollution of the working environment caused by the volatilization of toxic gases due to dry solids.
6. Suitable for a wide range of adhesives, such as white glue, universal glue, PU glue, hot melt glue, etc.
7. Large working range, capable of spraying 1000mmx600mm.
8. Environmentally friendly and energy-saving, with an exhaust system that can filter out odors and mist during adhesive spraying.
Technique parameter
Brand
|
Model
|
Spes
|
Voltage
|
Power
|
Pressure
|
Size
|
N.W.
|
Kui Lung
|
One machine with two guns
|
600*1000mm
|
220V
|
800W
|
0.5mpa
|
1700*1250*1680mm
|
260KG
|
